What's PythONI?

General Instruction

1. Open the Windows Command Prompt.

2. Navigate to "C:/Program Files/OxfordNanoimaging/.venv/Scripts" using the "cd" command:


3. Activate the NimOS python virtual environment by running "activate.bat":



4. Do whatever you would like to, for example, install a new module using "pip install [module]". Note that the NimOS python version is 3.6.6, and it is not recommended to upgrade the NimOS python version.

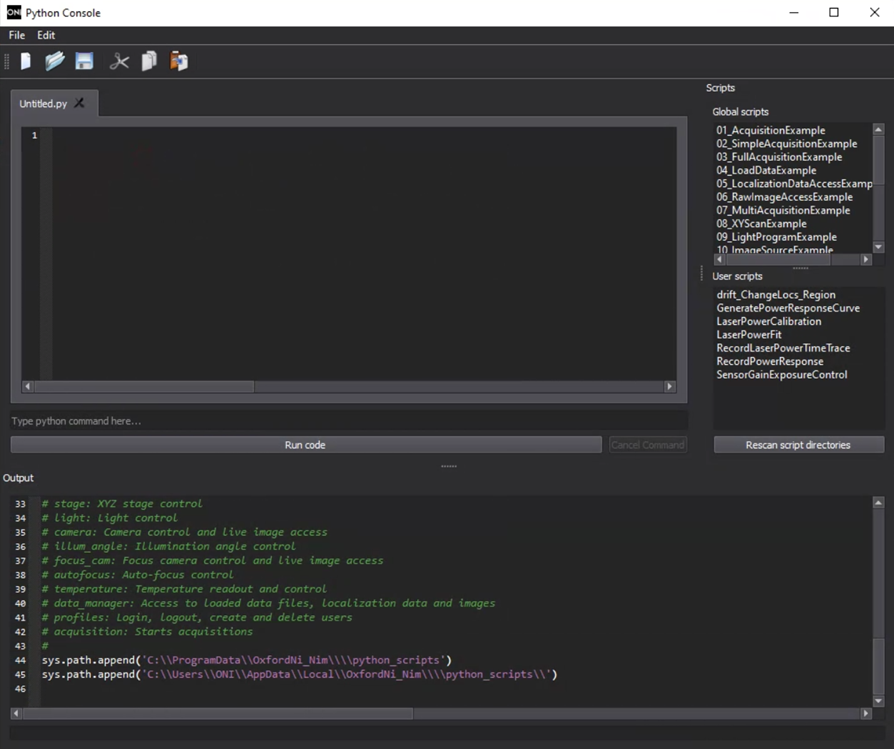

1. Click on Advanced > Python Console to open the PythONI window:


2. In the pop-up window, do whatever you would like to, for example, write a simple script to start an acquisition.

3. All example python scripts are available in Global Scripts and stored in "C:/ProgramData/OxfordNi_Nim/python_scripts". Some user-defined python scripts are available in User Scripts and stored in "C:/Users/ONI/AppData/Local/OxfordNi_Nim/python_scripts". It is highly recommended to review these example scripts for a better understanding of how to use certain functions in actual "combat".

4. There are several ways to run a python script from the PythONI interface:

1. Load the python script from File > Open and click on Run Code to run.

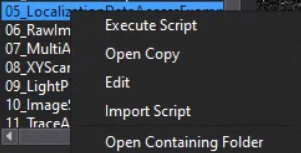

2. Right-click on any example script and click on Execute Script to run.


3. Execute a python script with arguments through the command line using the following commands:

   import sys sys.argv=['C:/users/oni/desktop/example.py', '--key1', 'argv1', '--key2', 'argv2'] # add arguments exec(open('C:/users/oni/desktop/example.py').read()) # run a python script with arguments

Cheatsheet (Function Blocks)

1. How to fetch a frame (or a channel) from the imaging camera and save it as an image


   # read the latest frame (raw) from camera and save it as a tiff image def save_frame_from_camera(o='C:/users/oni/desktop/image.tif'):     raw=camera.GetLatestImage() # get the latest frame from camera     p=raw.Pixels # read the pixels     h=raw.Dims.Height # read the height     w=raw.Dims.Width # read the width     # import numpy as np # import numpy if not done     im=np.array(p).reshape((h,w)) # cast to a numpy.array     import skimage.io # use skimage for saving tiffs     skimage.io.imsave(o,im,check_contrast=False) # save as 32-bit tiff

   # read the latest frame from camera and save one channel as a tiff image def save_channel_from_camera(o='C:/users/oni/desktop/channel.tif', c=0):     raw=camera.GetLatestImage() # get the latest frame from camera     p=raw.Channel(c).Pixels # read the pixels of channel c     h=raw.Channel(c).Dims.Height # read the height of channel c     w=raw.Channel(c).Dims.Width # read the width of channel c     # import numpy as np # import numpy if not done     im=np.array(p).reshape((h,w)) # cast to a numpy.array     import skimage.io # use skimage for saving tiffs     skimage.io.imsave(o,im,check_contrast=False) # save as 32-bit tiff

   # read the latest frame from camera and save one mapped channel as a tiff image def save_mapped_channel_from_camera(o='C:/users/oni/desktop/mapped_channel.tif', c=0):     raw=camera.GetLatestImage() # get the latest frame from camera     p=raw.MappedChannel(c).Pixels # read the pixels of channel c     h=raw.MappedChannel(c).Dims.Height # read the height of mapped channel c     w=raw.MappedChannel(c).Dims.Width # read the width of mapped channel c     # import numpy as np # import numpy if not done     im=np.array(p).reshape((h,w)) # cast to a numpy.array     import skimage.io # use skimage for saving tiffs     skimage.io.imsave(o,im,check_contrast=False) # save as 32-bit tiff



2. How to fetch a frame from the focus camera and save it as an image


   def save_frame_from_focus_camera(o='C:/users/oni/desktop/mapped_channel.tif'):     raw=focus_cam.GetLatestImage() # get the latest frame from the focus camera     im=nim_image_to_array(raw) # cast to a numpy.array     import skimage.io # use skimage for saving tiffs     skimage.io.imsave(o,im,check_contrast=False) # save as 16-bit tiff



3. How to control the lasers


   # turn on a laser at a percentage def turn_on_laser_percentage(l=0,p=30):     light.GlobalOnState=True # set global laser state to true     light[l].PercentPower=p # set laser l to p%     light[l].Enabled=True # turn on laser l

   # turn off a laser def turn_off_laser(l=0):     light[l].Enabled=False # turn off laser l     light[l].PercentPower=0 # set laser l to 0%

   # turn on the focus laser def turn_on_focus_laser(p=100):     light.FocusLaser.PercentPower=p # set focus laser at p%, the focus laser can also be access using light[5]     light.FocusLaser.Enabled=True # turn on focus laser

   # turn off the focus laser def turn_off_focus_laser():     light.FocusLaser.Enabled=False # turn off focus laser

   # read the laser information, such as power in mW def read_laser(l=0):     wavelength=light[l].Wavelength # get wavelength of laser l     power=light[l].PowerW*1000 # get current laser power in mW     print('current power of laser '+str(wavelength)+' is '+str(power)+'mW') # print



4. How to move the stages


   # move a stage to a position def move_stage_to_position(a=0,p=100):     if a==0: # x-stage         axis=stage.Axis.X     elif a==1: # y-stage         axis=stage.Axis.Y     else: # z-stage         axis=stage.Axis.Z     stage.RequestMoveAbsolute(axis,p) # move the stage by p um     # import time # import time if not done     while stage.IsMoving(axis): # wait until the stage is moved         time.sleep(0.01)     position=stage.GetPositionInMicrons(axis) # read current position in um     print('requested stage position is '+str(p/1000.0)+'mm') # print     print('current stage position is '+str(position/1000.0)+'mm') # print



5. How to control the LEDs


   # turn on an LED at a percentage def turn_on_led_percentage(l=0,p=0.5):     led=instrument.TransilluminationControl     if l==0: # for blue 465nm         led.SetRingColour([0,p,0]) # set LED power to p%     elif l==1: # for green 520nm         led.SetRingColour([0,0,p]) # set LED power to p%     else: # for red 620nm         led.SetRingColour([p,0,0]) # set LED power to p% # do whatever you would like to     led.Enabled=False # turn off LED



6. How to control the illumination angle


   # moves the illumination angle def set_illumination_angle(angle=0):     illum_angle.RequestMoveAbsolute(angle) # set the illumination angle     # import time # import time if not done     time.sleep(1) # wait at least 1s for illumination angle to change, code execution and stage translation are run on different threads     current_angle=illum_angle.GetPositionInDegrees()  # get the current illumination angle     print('requested illumination angle is '+str(angle)+' degrees') # print     print('current illumination angle is '+str(current_angle)+' degrees') # print



7. How to control the temperature


   # set and enable temperature control, default to 31C def set_temperature_control(target_temperature=31):     temperature.TargetTemperatureC=target_temperature # set the temperature in C     temperature.ControlEnabled=True # enable temperature control     current_temperature=temperature.CurrentTemperatureC # read the current temperature in C     print('requested temperature is '+str(target_temperature)+'C') # print     print('current temperature is '+str(current_temperature)+'C') # print # disable temperature control  def disable_temperature_contol():     temperature.ControlEnabled=False # disable temperature control



8. How to acquire an image


   # start an acquisition immediately def acquire_images(output_folder,output_filename,total_num_frames):     # set up lasers and camera     acquisition.SaveTiffFiles=True  # enable saving tiffs     acquisition.Start(output_folder,output_filename,total_num_frames) # start the acquisition immediately     # import time # import time if not done     while acquisition.IsActiveOrCompleting: # wait until the acquisition has completed         time.sleep(0.1)     while data_manager.IsBusy: # wait until the data has been processed         time.sleep(0.1)



9. How to run an overview scan
   The overview scan module is not natively supported by PythONI, so you will have to create your own scanning recipe. An example of snake scanning is provided here:


   # read a channel from camera def read_camera(c=0):     im=camera.GetLatestImage()     p=im.Channel(c).Pixels     h=im.Channel(c).Dims.Height     w=im.Channel(c).Dims.Width     return np.array(p).reshape((h,w)) # be sure to turn on lasers and set focus reference before overview scan!!! camera.SetTargetExposureMilliseconds(30) # set camera exposure to 30ms pixel=calibration.ChannelMapping.GetLatestMapping().pixelSize_um # read the pixel size xpos=stage.GetPositionInMicrons(stage.Axis.X) # set the origin to current position ypos=stage.GetPositionInMicrons(stage.Axis.Y) channel=0 # set the channel to scan tile=[10,10] # set row and column [row, col] x_positions=[] # initial x positions y=positions=[] # initial y positions width=camera.GetLatestImage().Channel(0).Dims.Width*pixel # get channel width in um height=camera.GetLatestImage().Channel(0).Dims.Height*pixel # get channel height in um # generate the position list for a snake scan for j in range(tile[0]): # for y, height, row     i=0     factor=1     for i in range(tile[1]): # for x, width, column         factor=1 if j%2==0 else -1 # update the factor separately for odd and even rows         x_positions.append(xpos+i*width*factor)         y_positions.append(ypos)     xpos=xpos+i*width*factor # update the origin for a new row     ypos=ypos+height I=[] # initial the frames for i in range(tile[0]*tile[1]):     stage.RequestMoveAbsolute(stage.Axis.X,x_positions[i]) # move the stage to position     stage.RequestMoveAbsolute(stage.Axis.Y,y_positions[i])     # import time # import time if not done        while stage.IsMoving(stage.Axis.X) or stage.IsMoving(stage.Axis.Y): # wait until the stage is moved         if autofocus.CurrentStatus is not autofocus.Status.FOCUSING_CONTINUOUS: # check z-lock             print('z-lock inactive')     time.sleep(0.01)     I.append(read_camera(channel)) # do whatever you would like to, for example, image stitching



10. How to create a light program
    Note that PythONI currently does not support group setting and manual input is needed.

    from NimDotNet import LightProgram # import library for light program lp=LightProgram([[[0,0,0,50]],[[0,0,50,0]]]) # create a two-step light program # light program: [ [step 1], [step 2], ... ] # step: [ [state 1], [state 2], ... ] # state: [laser 1, laser 2, laser 3, laser 4] lp.Step[0].Repeats=1000 # set the first step to repeat 1000 times lp.Step[1].Repeats=1000 # set the second step to repeat 1000 times light.Program=lp # set the light program light.ProgramActive=True # activate the light program



11. How to perform a multi-acquisition acquisition (load from a JSON file)

    # load a multiacquisition from a JSON file def load_multi_acquisition(input_filepath):     multi_acquisition=instrument.MultiAcquisitionControl # create an instance of the multiacquisition object     if not multi_acquisition.LoadConfigurationFromFile(input_filepath): # load a multiacquisition recipe from a JSON file         print('failed to load the multiacquisition configuration from file')     else:         multi_acquisition.Start() # start the multiacquisition         # import time # import time if not done         while multi_acquisition.IsRunning: # wait until the multiacquisition has completed             time.sleep(0.1)

Manual

1. instrument


   # methods instrument.Connect() # connect to the microscope instrument.ConnectToSimulatedHardware() # connect to the a simulated hardware instrument.Disconnect() # disconnect from the microscope instruments=instrument.GetAvailableInstruments() # get the available microscope(s) to a system.string[], use print(instruments[0]) to print the SN of the first available microscope instrument.SelectInstrument(instruments[0]) # select an instrument (id) to connect # properties autofocus=instrument.AutoFocusControl # create an instance of the autofocus object camera=instrument.CameraControl # create an instance of the camera object focus_cam=instrument.FocusCameraControl # create an instance of the focus camera object illum_angle=instrument.IlluminationAngleControl # create an instance of the illumination object flag=instrument.IsConnected # check to see if the microscope is connected light=instrument.LightControl # create an instance of the laser object stage=instrument.StageControl # create an instance of the stage object temperature=instrument.TemperatureControl # create an instance of the temperature object led=instrument.TransilluminationControl # create an instance of the LED object



2. light


   # methods flag=light.IsLaserPresent(0) # check to see if the UV laser is available, the laser order is [0,1,2,3,4,5] -> [UV, blue, green, red, iSCAT, focus laser] # properties focus_laser=light.FocusLaser # create an instance of the focus laser object flag=light.FocusLaserOn # check to see if the focus laser is on, can also be set to True to turn on the focus laser light.GlobalOnState=True # enable the laser global on state, equals to Enable Active Lasers/Disable Lasers light[0].Enabled=True # enable the first laser light[0].PercentPower=30 # set the power of the first laser to 30% value=light[0].PowerW # get the current power of the first laser in W value=light[0].PowerDensitykWcm2 # get the current power density of the first laser in kWcm2 value=light[0].Wavelength # get the wavelength of the first laser in nm flag=light.IsConnected # check to see if the lasers are connected flag=light.IsFocusLaserPresent # check to see if the focus laser is available value=light.NumLasers # check how many imaging lasers are available, including UV, blue, green, and red light.Program=lp # set the light program to lp (NimDotNet.LightProgram), where lp should be defined in advanced for example using lp=LightProgram([[[0,0,0,50]],[[0,0,50,0]]]) light.ProgramActive=True # enable the light program, equals to Enable Light Program



3. stage


   # properties axis=stage.Axis(0) # get the id of the first stage, which can be used for controlling value=stage.GetMaximumInMicrons(stage.Axis(0)) # get the positive limit of the first stage in um value=stage.GetMinimumInMicrons(stage.Axis(0)) # get the negative limit of the first stage in um value=stage.GetPositionInMicrons(stage.Axis(0)) # get the current position of the first stage in um flag=stage.IsConnected(stage.Axis(0)) # check if the first stage is connected flag=stage.IsInitializing(stage.Axis(0)) # check if the first stage is initializing flag=stage.IsMoving(stage.Axis(0)) # check if the first stage is moving, which must be used to identify the stop point of each translation stage.RequestMoveAbsolute(stage.Axis(0),100) # move the first stage to +100um axis=stage.Axis.X # alternative way to access the id of the first stage



4. illum_angle


   # methods flag=illum_angle.Connected # check if the TIRF stage is connected value=illum_angle.CurrentPositionInDegrees # get the current illumination angle in degree value=illum_angle.GetMaximumDegrees() # get the maximum illumination angle in degree value=illum_angle.GetMinimumDegrees() # get the minimum illumination angle in degree illum_angle.RequestMoveAbsolute(53) # set the illumination angle to 53 degrees



5. temperature


   # method value=temperature.CurrentTemperatureC # get the current temperature in C # properties temperature.ControlEnabled=True # enable the temperature control temperature.TargetTemperatureC=37 # set the target temperature to 37 C



6. camera


   # methods flag=camera.GetDeviceState() # get camera state, can be [DeviceState.UNINITIALIZED, DeviceState.INITIALIZING, DeviceState.CONNECTED, DeviceState.VIEW_STARTING, DeviceState.VIEW_ACTIVE, DeviceState.VIEW_STOPPING] flag=camera.GetAcquisitionState() # camera.BeginView() # start the camera live view camera.StopView() # end the camera live view value=camera.GetExposureTimeMilliseconds() # get the exposure in ms value=camera.GetFramesPerSecond() # get the frequency in Hz camera.SetTargetExposureMilliseconds(10) # set the exposure to 10ms camera.SetTargetFramesPerSecond(100) # set the frequency to 100Hz image=camera.GetLatestImage() # get the latest frame from the camera value=camera.GetROIHeight() # get the height of the current ROI, default to 1024 value=camera.GetROIWidth() # get the width of the current ROI, default to 1024 value=camera.GetROIOffsetX() # get the x-offset of the current ROI, default to 0 value=camera.GetROIOffsetY() # get the y-offset of the current ROI, default to 0 camera.SetROI(left,top,width,height) # set the ROI in RECT format [x,y,width,height] value=camera.GetSensorTemperatureCelsius() # get camera temperature in C value=camera.NumberOfFramesWaitingInBuffer() # get the number of frame in the buffer images=camera.CreateImageSourceAndAcquire(100) # immediately acquire 100 frames from the camera continuously images=camera.CreateImageSourcePaused(100) # initiate the acquisition for 100 frames from the camera, which will start upon calling camera.ContinueAcquisitionFor() camera.ContinueAcquisitionFor(frame_count,flag_reset_view,flag_stop_view) # continue to acquire some frames from the camera continuously after initialization value=camera.MaxROIHeight # get the maximum height of the camera with binning value=camera.MaxROIWidth # get the maximum width of the camera with binning



7. focus_cam


   # methods value=focus_cam.GetExposureTimeMilliseconds() # get the exposure of the focus camera in ms value=focus_cam.GetFramesPerSecond() # get the frequency of the focus camera in Hz image=focus_cam.GetLatestImage() # get the latest frame from the focus camera value=focus_cam.GetROIHeight() # get the height of the current ROI value=focus_cam.GetROIWidth() # get the width of the current ROI value=focus_cam.GetROIOffsetX() # get the x-offset of the current ROI value=focus_cam.GetROIOffsetY() # get the y-offset of the current ROI focus_cam.SetROI(top,left,width,height) # set the ROI of the focus camera in RECT format focus_cam.SetTargetExposureMilliseconds(50) # set the exposure of the focus camera in ms focus_cam.SetTargetFramesPerSecond(20) # set the frequency of the focus camera in Hz # properties flag=focus_cam.IsConnected # check if the focus camera is connected



8. autofocus


   # methods autofocus.ClearReferencePoint() # clear the current focus reference autofocus.StartReferenceCalibration() # set the focus reference, equals to Set Focus Ref. autofocus.StartContinuousAutoFocus() # enable the z lock, equals to Z Lock autofocus.Stop() # stop the z lock, equals to Stop Z Lock flag=autofocus.HasReferencePoint # check if a focus reference has been set autofocus.QuickFocus(0) # perform one-time focus, equals to Focus # properties flag=autofocus.CurrentStatus # get the focus state, can be [autofocus.Status.NOT_RUNNING, autofocus.Status.CALIBRATING, autofocus.Status.FOCUSING_SINGLE_SHOT, autofocus.Status.FOCUSING_SINGLE_SHOT_QUICK, autofocus.Status.FOCUSING_CONTINUOUS] value=autofocus.FocusOffsetMax # get the maximum z offset in um value=autofocus.FocusOffsetMin # get the minimum z offset in um autofocus.FocusOffset=1 # set the z offset in um



9. acquisition


   # methods flag=acquisition.State # get the acquisition state, can be [acquisition.AcquisitionState.NOT_ACQUIRING, acquisition.AcquisitionState.ACQUISITION_ACTIVE, acquisition.AcquisitionState.ACQUISITION_PAUSED, acquisition.AcquisitionState.ACQUISITION_COMPLETING] acquisition.Start('folder_name','filename',frame_count) # start the acquisition immediately acquisition.InitAcquisition('folder_name','filename',frame_count) # initiate an acquisition, which will start upon calling acquisition.ContinueFor(frame_count) acquisition.ContinueFor(frame_count) # continue to acquire some frame from the camera after initialization acquisition.Stop() # stop the current acquisition, equals to Stop # properties acquisition.SaveTiffFiles=True # enable saving tiffs acquisition.RealTimeLocalization=True # enable real-time localization flag=acquisition.IsAcquiring # check if the current acquisition is running flag=acquisition.IsActiveOrCompleting # check if the current acquisition is completing



10. calibration


    # methods channel_mapping=calibration.ChannelMapping # create an instance of the channel mapping object calibration.ChannelMapping.BeginCalibration(20,2000,5,10,True) # start the channel mapping with default setting, arguments are [max_fov, target_number_points, max_pixel_distance_between_channels, exclusion_radius_between_channels, use_zlock] value=calibration.ChannelMapping.GetLatestMapping().pixelSize_um # get the pixel size in um value=calibration.ChannelMapping.GetLatestMapping().stDevSingleAxisAbsoluteErrors # get the standard deviation of errors of the latest channel mapping in pixels value=calibration.ChannelMapping.GetLatestMapping().proportionCoverage # get the point coverage of the latest channel mapping in [0.0, 1.0] calibration.ChannelMapping.SaveLatestCalibration() # save the latest channel mapping, equals to Save Mapping calibration.ChannelMapping.SaveDefaultMapping() # save the default channel mapping, equals to Reset Mapping To Default



11. data_manager


    # methods data_manager.LoadData("absolute_file_directory") # load a data from directory, can be tif or locb data_manager.Clear() # clear the data # properties value=data_manager.BinaryFiles # get the binary files in system.string in the order [0, 1] -> [locb, nimb], use value[0] to access the locb file value=data_manager.Directory # get the absolute directory of the current data value=data_manager.Files # get some files in system.string in the order [0, 1, 2] -> [tif, locb, nimb] value=data_manager.ImageFiles # get the tiff file from the current data flag=data_manager.IsAcquiring # check if the data manager is acquiring images flag=data_manager.IsBusy # check if the data manager is busy flag=data_manager.IsEmpty # check if the data manager is empty flag=data_manager.IsLoading # check if the data manager is loading data flag=data_manager.IsProcessing # check if the data manager is processing data locs=data_manager.Localizations # create an instance of the localization object value=data_manager.RawImages.TotalFrames # get the number of frames from the current data value=data_manager.RawImages.NChannels # get the number of channels from the current data value=data_manager.RawImages.AcqData.JSON # read the acq.nim file of the current data image=data_manager.RawImages.GetChannelImage(index,channel) # get a channel from the current data image=data_manager.RawImages.GetImage(index) # get a frame from the current data image=data_manager.RawImages.GetMappedChannelImage(index,channel) # get a mapped channel from the current data



12. user_settings


    # methods user_settings.CropTiffImages=True # enable cropping tiffs user_settings.DisableLasersAfterAcquisition=True # enable turning off lasers after acquisition user_settings.SplitFiles=True # enable saving tiffs as chunks of 2GB files



13. Other useful functions:


    # print_methods print_methods(instrument) # print available methods and properties for a chosen object # nim_image_to_array image=nim_image_to_array(data_manager.RawImages.GetImage(index)) # convert a NimOS image to a numpy.array

Discussion

1. Programming with PythONI is not limited only to this instruction and we encourage our users to try all kinds of combinations. For example, you may integrate a hardware control (e.g. a pump system) into the NimOS automation. Note that the current NimOS python version is 3.6.6 and an upgrade is not recommended at this moment.
2. The current PythONI interpreter does not come with a debugger. For debugging PythONI codes, it is recommended to install a python IDE that comes with a debugger, such as Spyder, in the NimOS environment. Once the virtual environment is activated, for example, you can do "pip install spyder". Note that the python interpreter needs to be changed to the NimOS one from the IDE.

3. The NimOS GUI has some interactions with PythONI and therefore clicks or modifications to the GUI could crash NimOS if a PythONI code is running. It is recommended to not change anything from the NimOS GUI during execution.

If at any point you are having issues with the coding process, please do not hesitate to contact the CX team.
