Keyboard Control

NimOS offers several keyboard controls. To activate the keyboard control, left-click on any of the channels.

1. Arrows: controls X/Y translation.

2. PgUp/PgDn: controls Z translation.

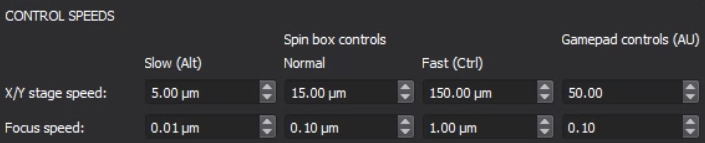

3. Ctrl: activate coarse translation (faster speed). The speed can be defined in Settings > User Settings per user.

4. Alt: activate fine translation (slower speed). The speed can also be defined in Settings > User Settings per user:



5. Gamepad control (e.g. an Xbox controller) is also supported.
