Temperature Control
Temperature Control:

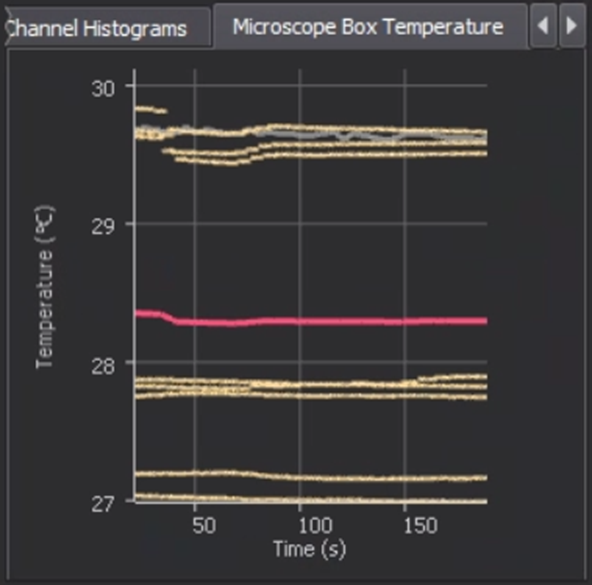

- Target: set the target temperature. All the thermistor readings can be monitored in the Microscope Box Temperature tab:
- Current: show the temperature feedback in real-time, averaged from all thermistors. Hover around the current temperature box to show the temperature range of the thermistors:
- Enable Control: enable/disable temperature control. Note that the Nanoimager can heat from its working temperature (usually 27~32°C) up to 42°C. However, it can't cool down to a lower temperature.
