Connect To Microscope

Connect To Microscope

The microscope can be connected via the ONI software called NimOS :

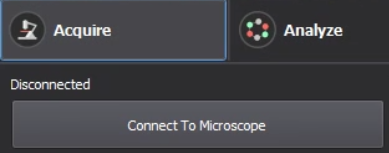

  1. Click on Acquire, and then click on Connect To Microscope:

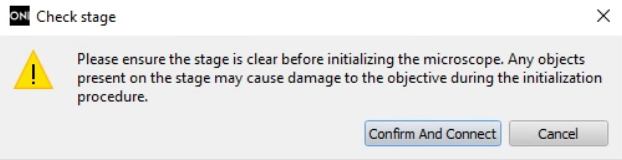

  2. In the pop-up window, click on Confirm And Connect to proceed with the connection:
  3. Wait for the initialization to finish. An error message will appear if NimOS fails to connect to the microscope.
  4. Sign up/Sign in to your account from User Login to create/retrieve your own acquisition settings. The default user name is DEFAULT_USER.

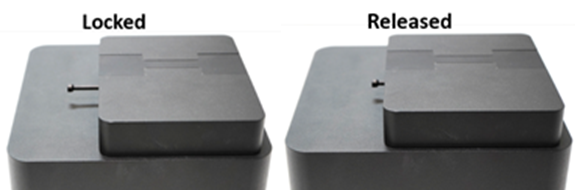

  5. Push the interlock into the inserted release position to open the lid and load a sample.
  6. Close the lid and pull the interlock to allow laser engagement.
